W hat are Advanced Driver Assistance Systems ?
1. What is ADAS?
Traffic safety management is undergoing a radical transformation from traditional infrastructure and driver education approaches to in car autonomous intervention systems. At the center of this transformation is ADAS (Advanced Driver Assistance Systems), which are not merely equipment that enhances driving comfort, but critical safety shields aiming to completely eliminate crash risks by compensating for human error.
However, there is an often overlooked issue today that poses significant risks: the calibration processes that ensure the "eyes and ears" of these systems function correctly. In this article, we deeply examine ADAS technologies, their technical infrastructures, their effects on crash statistics, and the vitally important calibration requirements.
2. How Did Its Historical Evolution Unfold?
ADAS is a comprehensive set of electronic sensors, cameras, and radar systems that enable a vehicle to perceive its surroundings and warn or intervene to protect the driver against potential hazards. In short, it means having a digital copilot by your side that never gets tired and can make decisions in milliseconds.
Driving assistance systems have evolved from simple mechanical aids to complex artificial intelligence and sensor fusion technologies:
1970s (The Birth of Reactive Systems): The first major step was taken in 1978 with the introduction of electronic ABS (Antilock Braking System) technology. This system aimed to provide the driver with steering control just before a crash.
1990s (Stability and Speed Control): ESC (Electronic Stability Control) was developed in 1995. In 1999, the first radar based Adaptive Cruise Control (ACC) systems took their place in luxury segment vehicles.
2010s (Proactive Intervention Era): AEB (Autonomous Emergency Braking) and LKA (Lane Keeping Assist) systems began to become prerequisites for achieving 5 stars in Euro NCAP tests.
Post 2022 and Current Situation: With the European Union regulation GSR 2019/2144, ADAS equipment gradually became a legal requirement in all new vehicles. These systems, which now form the foundation of the autonomous vehicle race, are rapidly advancing toward a level where the driver will be completely out of the loop (Level 4 and 5).
3. What are ADAS Systems?

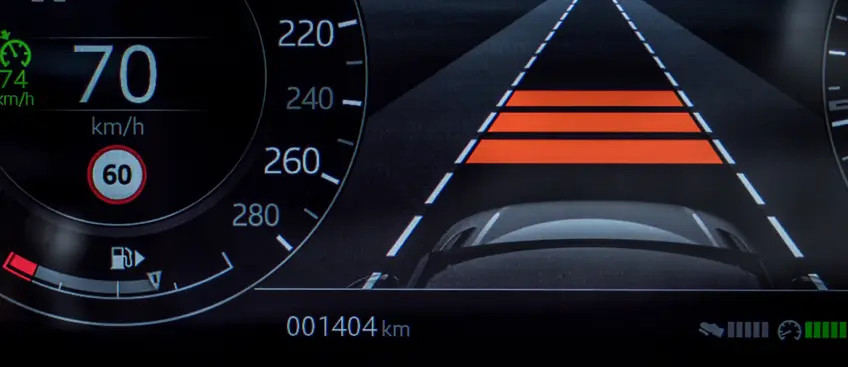

Adaptive Cruise Control (ACC): This system is intelligent comfort and safety equipment that automatically adjusts the speed of your vehicle according to the speed of the vehicle ahead during highway driving. Thanks to the radar sensors placed on the front grille, it continuously measures the safe following distance between you and the vehicle in front and directly transmits acceleration or braking commands to the engine and braking system of the vehicle. Its greatest benefit is that it significantly reduces the risk of a rear end crash by decreasing driver fatigue, especially during long journeys or in stop and go traffic.

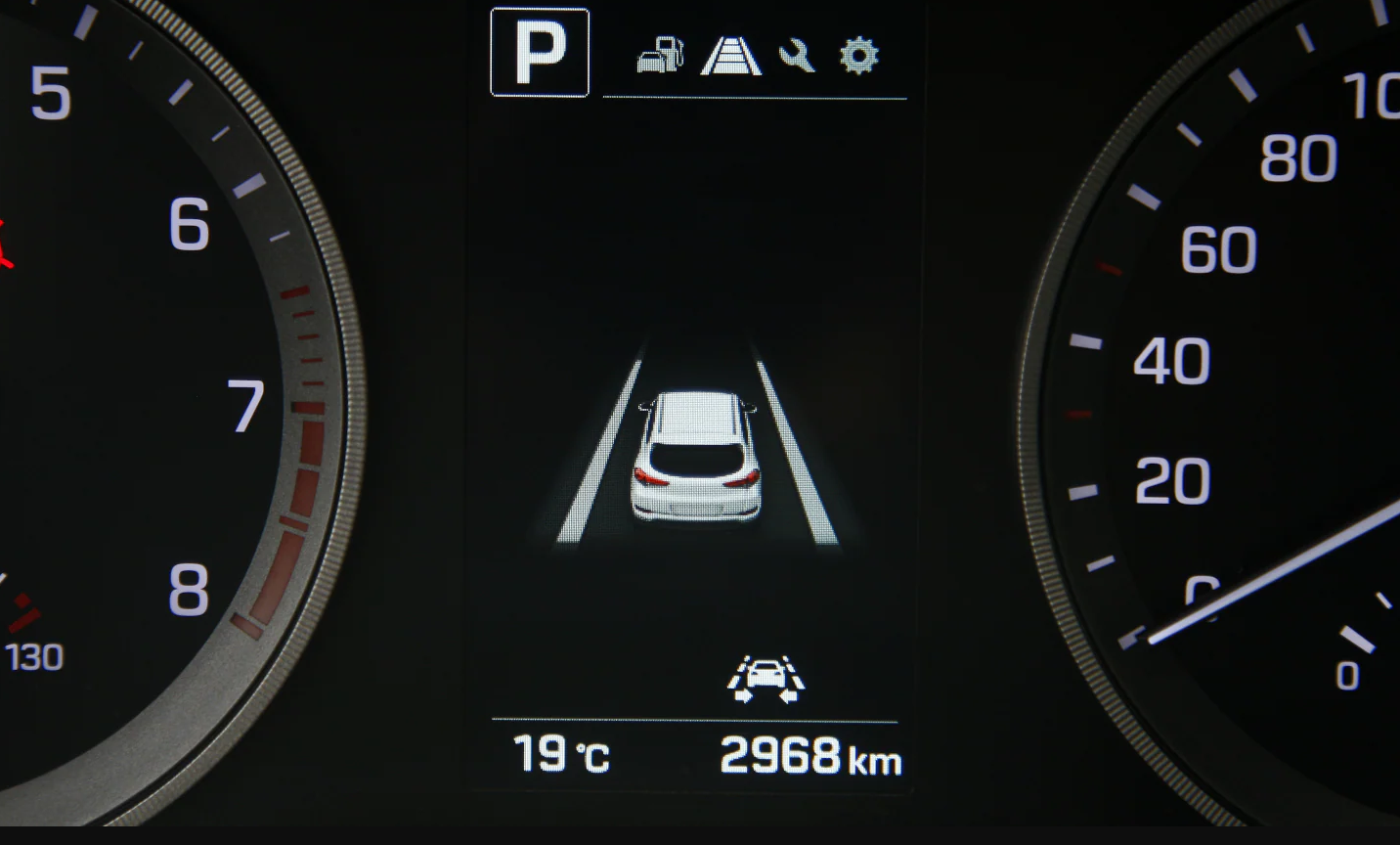

Lane Departure Warning: It is a proactive safety measure that activates if the driver leaves their lane without signaling. Through cameras placed on the windshield, it continuously reads the lane lines on the road and warns the driver with a steering wheel vibration or an audible alert during unauthorized deviations of the vehicle. By preventing the vehicle from leaving the road in situations such as inattention or drowsiness, it averts a potential crash scenario early on.

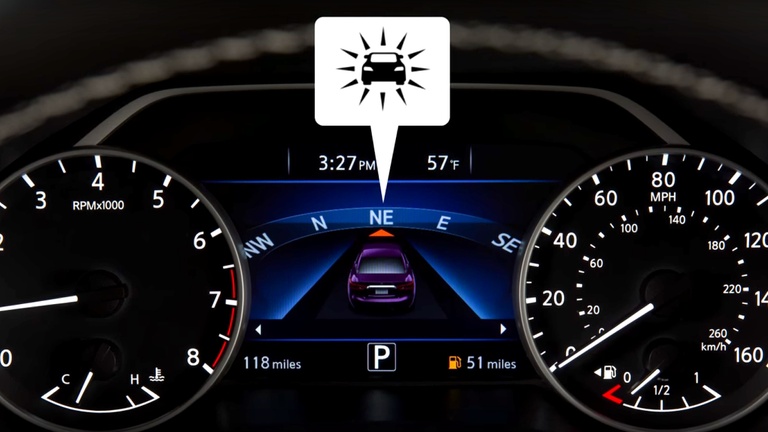

Forward Collision Warning: It is a critical assistant system that warns the driver in advance of a potential hazard by detecting obstacles, other vehicles, or pedestrians in front of the vehicle. Using radar and camera fusion, it calculates the approach speed and the distance to the obstacle multiple times per second; if the probability of a crash is high, it provides visual and auditory alarms, prompting the driver to react urgently. By immediately focusing the attention of the driver on the road, it accelerates the reaction time and offers the opportunity to prevent disasters before they even occur.

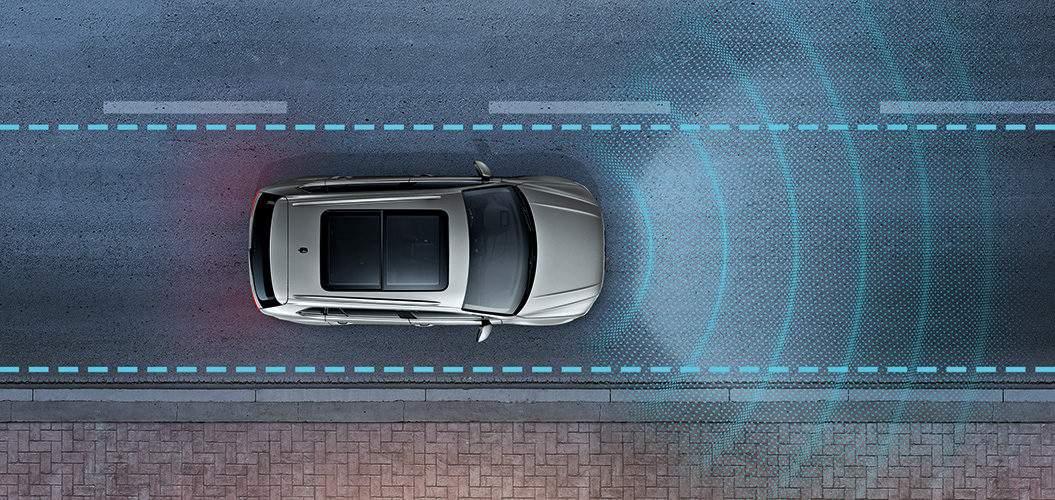

Lane Keeping Assist: It is an active steering support system that not only provides a warning but also physically intervenes when the vehicle shows a tendency to depart from its lane. When the cameras detect that the vehicle is crossing the lane boundaries, it applies a light torque to the electronic steering system, gently guiding the vehicle back into its own lane. It directly saves lives by preventing the vehicle from drifting into barriers or vehicles in the adjacent lane due to momentary distractions, especially during highway driving.

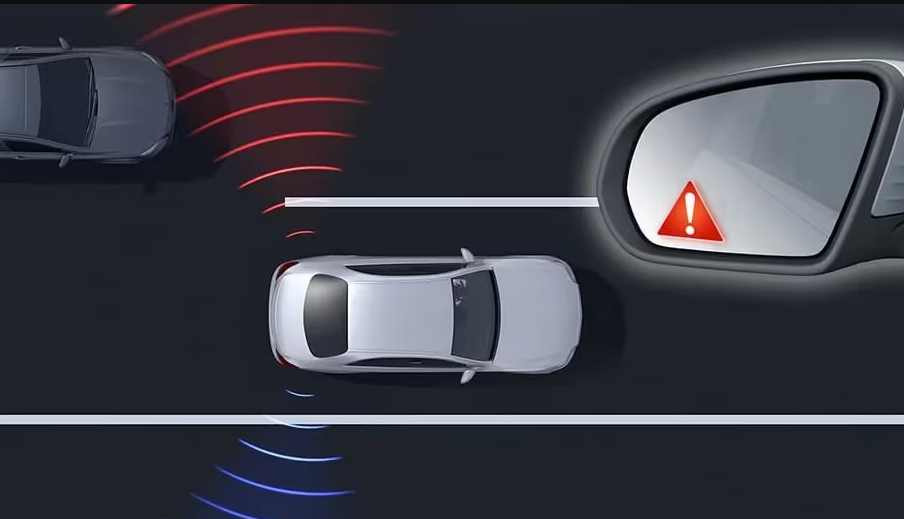

Blind Spot Monitoring: It acts as an invisible electronic eye that detects vehicles traveling in areas the driver cannot see through the mirrors. Thanks to the ultrasonic sensors or short range radars located in the rear bumper, it detects vehicles coming from adjacent lanes and provides a visual warning with LED lights on the side mirrors. It aims to eliminate the risks of a side crash that could occur as a result of not noticing the vehicle in the blind spot during a lane change.

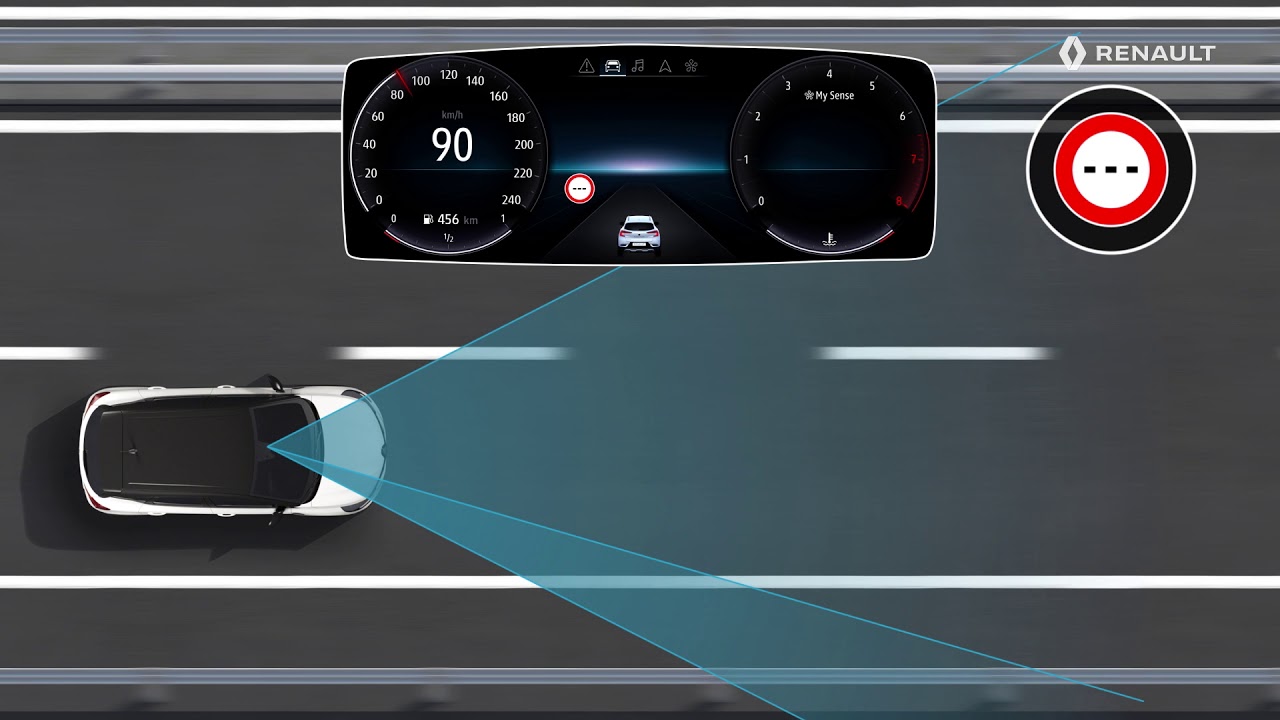

Traffic Sign Recognition: It is an informational assistant that reads speed limits, no overtaking restrictions, and other important traffic signs along the roadside in real time and displays them on the screen of the driver. By analyzing the images captured by the front camera using image processing algorithms, it recognizes the pictograms on the signs and projects them onto the digital instrument cluster of the vehicle or the windshield (HUD). By preventing the driver from momentarily missing the speed limit, it both prevents legal violations and enhances safety by ensuring that the vehicle is driven in accordance with the design speed of the road.

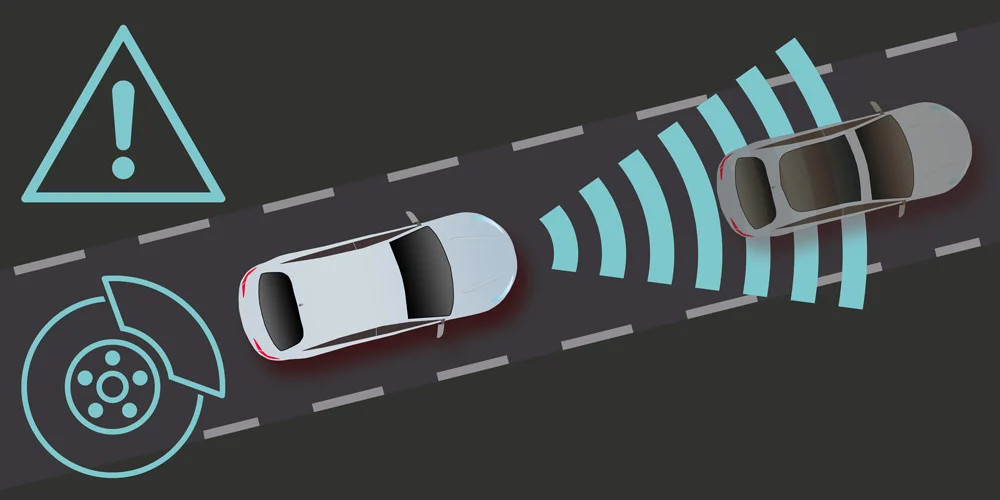

Forward Collision Mitigation System: It is a last resort braking mechanism that engages autonomously in critical moments when the driver does not react to the warnings of the Forward Collision Warning system. When it confirms through sensors and radars that a crash is inevitable, the system automatically locks the vehicle brakes at maximum power even if the driver does not press the brake pedal. Its purpose is to dramatically mitigate the physical damage the occupants of the vehicle will sustain by minimizing the speed at the moment of the crash, even if it is not possible to bring the vehicle to a complete stop.

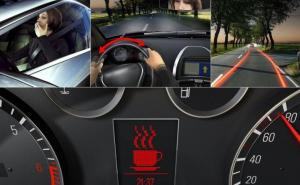

Driver Fatigue Monitoring System: It is an algorithmic analysis system that continuously monitors whether the person behind the steering wheel remains awake and focused on the road. It calculates the instantaneous fatigue level by processing parameters such as sudden corrections in the steering grip of the driver, lane violations, or blink rate using interior infrared cameras. When the detected fatigue threshold is exceeded, it strongly recommends taking a break with a coffee cup symbol or auditory warnings, thereby preventing road departure crashes caused by sleep.

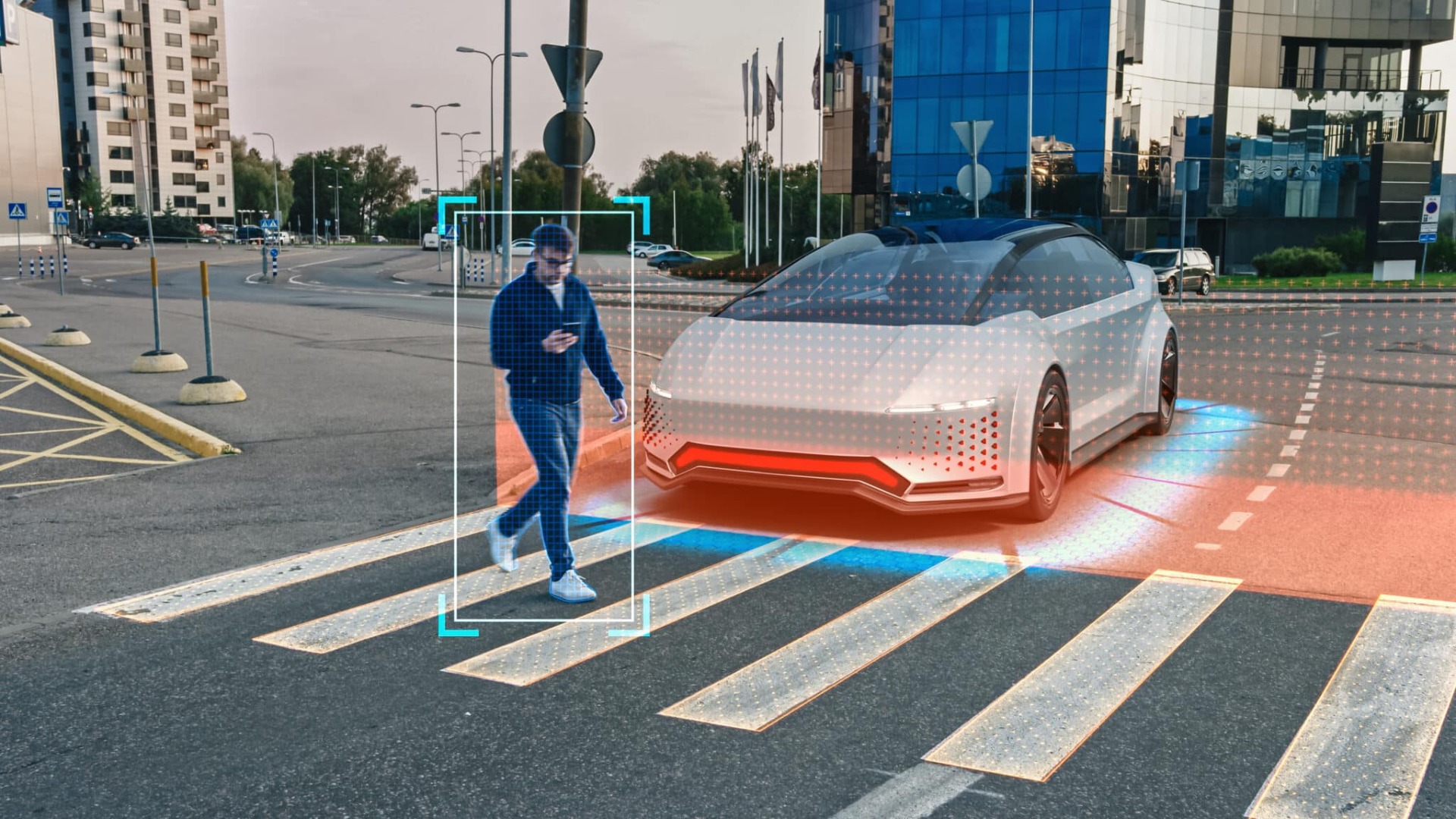

Pedestrian Detection System: It is a specific safety subsystem optimized to detect pedestrians and cyclists who may suddenly step in front of vehicles, especially in urban traffic. High resolution cameras and radars analyze human silhouettes and their directions of movement on the road within seconds, warning the driver and engaging the autonomous brake if necessary. By significantly reducing the crash rates involving vulnerable road users, it directly contributes to safety in urban traffic culture.

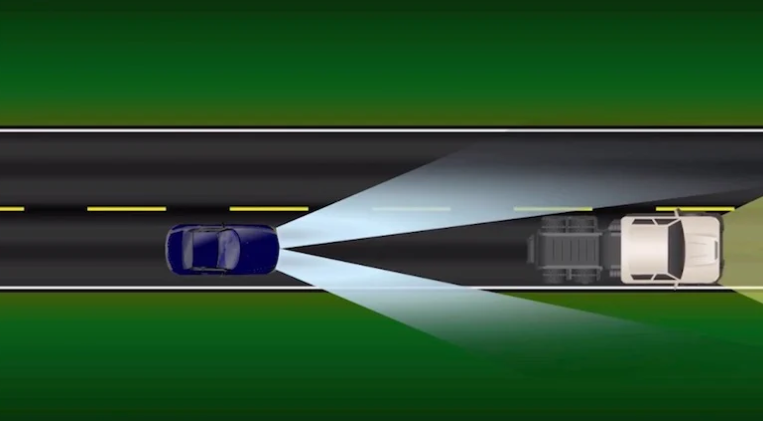

Adaptive Headlight System: It is an intelligent lighting technology that instantaneously changes the illumination angle and intensity during night driving according to the steering direction, vehicle speed, and oncoming traffic. When an oncoming vehicle approaches, it turns off the LED matrices in that specific area so as not to dazzle the other driver, while it directs the light towards the inside of the curve according to the steering angle when entering curves. By keeping the field of vision of the driver at a maximum during night driving, it allows for much earlier precautions to be taken against hazards that may emerge from the dark.

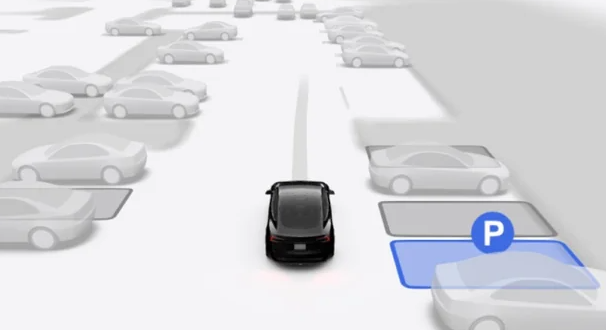

Automatic Parking System: It is supportive equipment that enables the vehicle to maneuver itself into a suitable parking space without the need for steering, accelerator, and brake intervention from the driver. The ultrasonic sensors and 360 degree cameras surrounding the vehicle measure the gaps with millimeter precision and draw a perfect parking trajectory by taking over the electronic steering system. Besides preventing minor damages that might occur while maneuvering in tight spaces, it also completely eliminates parking stress.

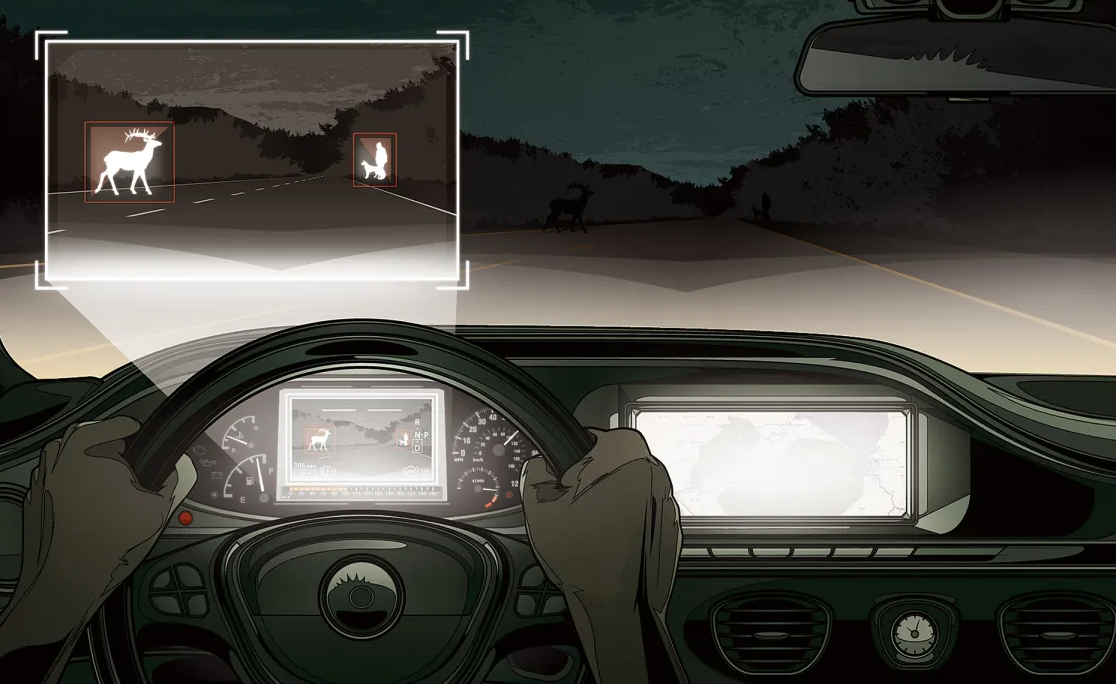

Night Vision and Animal Detection System: It is an advanced safety measure that detects the body heat of living creatures in dark environments where the human eye or standard headlights are insufficient. Thanks to the thermal infrared cameras hidden in the front grille, it detects large animals or pedestrians with the potential to step onto the road from their heat signatures and highlights them as yellow or red silhouettes on the in car display. By making it possible to notice animals that remain outside the headlight range well in advance, especially on rural roads, it largely eliminates the probabilities of severe wildlife related crashes.

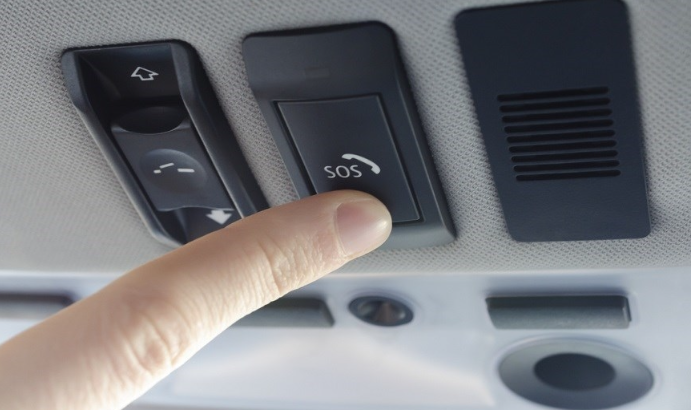

eCall Emergency Call System: It is a telematics communication system that autonomously transmits the status and location information of the vehicle to emergency service teams after a crash, even if the occupants of the vehicle are unconscious. When the airbags of the vehicle deploy or a severe impact is detected, it automatically calls the 112 emergency call center over an internal line and sends the exact GPS coordinates of the vehicle as a data packet. By critically shortening the first response time after a crash, it directly and provenly increases the survival rate in severe injuries.
4. ADAS Calibration
Having ADAS equipment in a vehicle is not enough on its own; these systems must look at the road with millimeter precision. According to Adaskalibrasyon data, the process of aligning the cameras and radars in vehicles according to manufacturer standards so they can operate correctly is called calibration. Even a 1 degree deviation in the sensors can cause the vehicle to detect an obstacle in another lane 100 meters ahead and apply the emergency brakes unnecessarily or fail to see a real obstacle
In Which Situations is Calibration Required?
Windshield replacements (Cameras are usually integrated into the windshield).
Bodywork repairs and bumper replacements (Radars are located behind the bumper).
Suspension changes, wheel alignments, and procedures that alter the vehicle height.
After any crash the vehicle is involved in.
Upon error or "system disabled" warnings appearing on the instrument panel.
5. Effects of ADAS Systems on Crash Statistics
The impact of Advanced Driver Assistance Systems (ADAS) on traffic safety is no longer just a theoretical expectation but a statistical reality proven by global authorities. Considering that human error is the main factor in more than 90% of all on road crash cases, the autonomous intervention capability of these sensor based systems directly saves lives. Current data published by international road safety institutes clearly demonstrate this success:
According to the comprehensive field reports of the Insurance Institute for Highway Safety in America, vehicles equipped with Autonomous Emergency Braking and Forward Collision Warning systems reduce rear end crash rates by 50% compared to vehicles without these features. Furthermore, in the event of an unavoidable crash that occurs despite intervention, the risk of injury decreases by 56% because the speed is greatly reduced.
Protection of Vulnerable Road Users: According to analyses by the European Transport Safety Council, with the widespread adoption of Autonomous Emergency Braking systems featuring pedestrian and cyclist detection in the European market, it has been proven that pedestrian fatalities and severe injury crash cases have decreased by an average of 30%.
Legal and Physical Limitation in Speed Related Incidents: With the full adaptation of the Intelligent Speed Assistance system, which has become mandatory in new vehicles under the European Union GSR regulations, a net decrease of 20% in speed related fatal crash numbers is projected across Europe. This statistic means saving thousands of lives every year.
Prevention of Lane Departures and Head On Crashes: The active use of Lane Keeping Assist and Blind Spot Monitoring systems reduces single vehicle road departure and head on crash cases occurring by crossing into the opposite lane by an average of 11%. The success rate of systems that actively steer the steering wheel back into its own lane (LKA) in preventing fatal incidents is much higher than systems that only provide auditory warnings.
6. Some Notable Manufacturer Warnings
- Forward Collision Warning is for guidance purposes only and cannot replace careful driving and sound judgment.
- Automatic Emergency Braking is not designed to prevent all crashes. This feature may minimize the impact of a crash by attempting to reduce your driving speed in certain situations.
- The driver is always responsible for operating the vehicle in accordance with traffic rules. The system is designed to assist and does not relieve you of the responsibility to drive with due care and attention.
- As the person driving the vehicle, the full responsibility of the driving task always belongs to you. Supportive systems cannot replace the attention of the person driving the vehicle. Devote your full attention to driving and always be ready to intervene in traffic.
- ATTENTION ASSIST is only an auxiliary tool. It cannot always detect fatigue or increasing inattention in a timely manner.
7. What Awaits Us in the Future?
Advanced Driver Assistance Systems (ADAS) perceive only as much as they can "see" through radars and cameras. Hazards outside the line of sight (Non Line of Sight), such as snowfall, dense fog, or behind a sharp curve, push the limits of even the most advanced sensors. This is exactly where V2X (Vehicle to Everything Communication), the greatest revolution of 2026 and beyond, comes into play.
V2X is the uninterrupted, instantaneous, and encrypted data exchange of vehicles with other vehicles around them, traffic lights, pedestrians, and cloud networks via 5G technology. By giving vehicles almost a "telepathy" ability, this technology aims to eliminate crash risks long before the sensors even see the hazard.
1. V2V (Vehicle to Vehicle Communication): It is the system where vehicles share data among themselves, such as speed, direction, steering angle, and braking status, up to ten times per second.
2. V2I (Vehicle to Infrastructure Communication): It is the communication of vehicles with smart city infrastructures, namely traffic lights, speed cameras, toll booths, and electronic directional signs.
3. V2P (Vehicle to Pedestrian Communication): It is the network that allows vehicles to communicate with smartphones or wearable technologies (smartwatches, etc.) carried by pedestrians and cyclists.
4. V2N (Vehicle to Network Communication): It is the communication of vehicles with central cloud systems over broadband mobile networks (especially ultra low latency 5G).
